Exhibiting at large industry events presents serious operational challenges that affect your budget and environmental standing. Traditional exhibition builds depend heavily on expanded foam PVC, petroleum-based styrene, and composite plastic sheets. These substrates generate immense amounts of non-recyclable solid waste once an exposition closes its doors. At the same time, drayage fees, freight weights, and logistics surcharges continue to climb across conventional convention halls. When you factor in the growing demand from corporate stakeholders for verifiable carbon reduction, relying on obsolete synthetic substrates creates friction for your overall event strategy.

Opting for circular materials requires deliberate technical planning rather than casual substitution. If you select paper-based media without evaluating its internal core structure, you risk panel warping under fluctuating venue humidity, edge crushing during transit, and muted graphic reproduction under harsh hall lighting. A poorly engineered substrate can compromise your brand presentation in front of prospective clients, partners, and competitors. Striking the balance between ecological responsibility and pristine structural presentation demands an informed selection process.

By understanding how engineered paper composites function, you can procure reliable displays that cut shipping bulk and enter municipal recycling streams smoothly. High-performance honeycomb display boards offer an effective answer to these operational challenges. They deliver the structural rigidity required for freestanding architectural walls while using renewable wood pulp fibers. Adopting these advanced materials enables your team to lower freight expenses, streamline installation workflows, and uphold rigorous environmental standards without sacrificing visual impact.

Understanding Honeycomb Core Geometry and Compression Dynamics

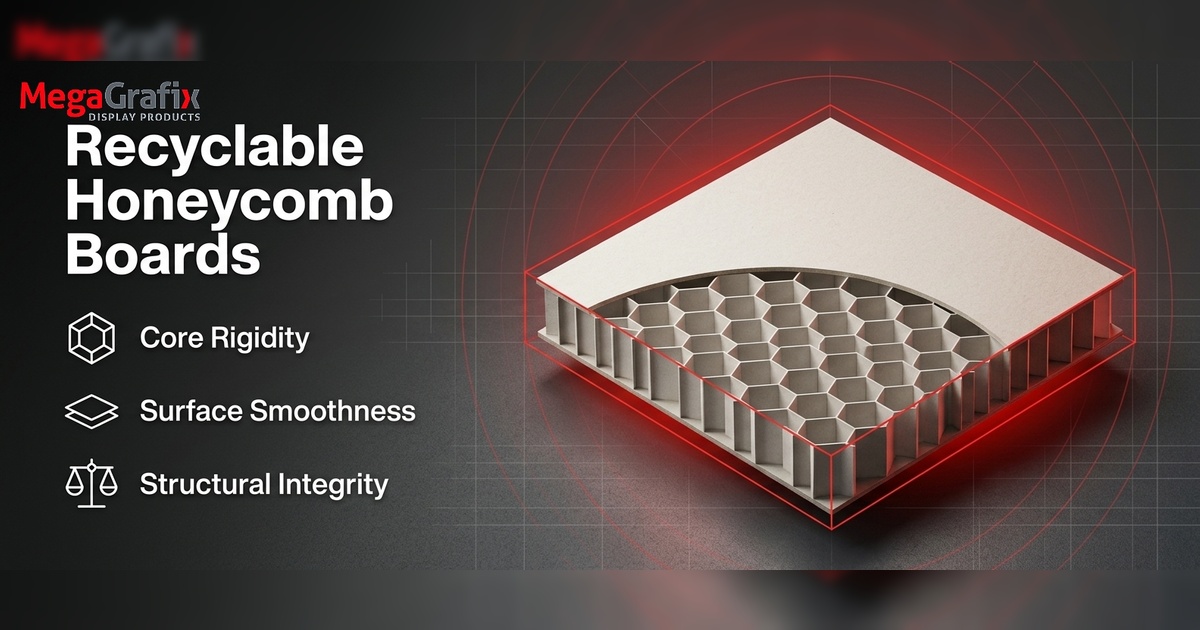

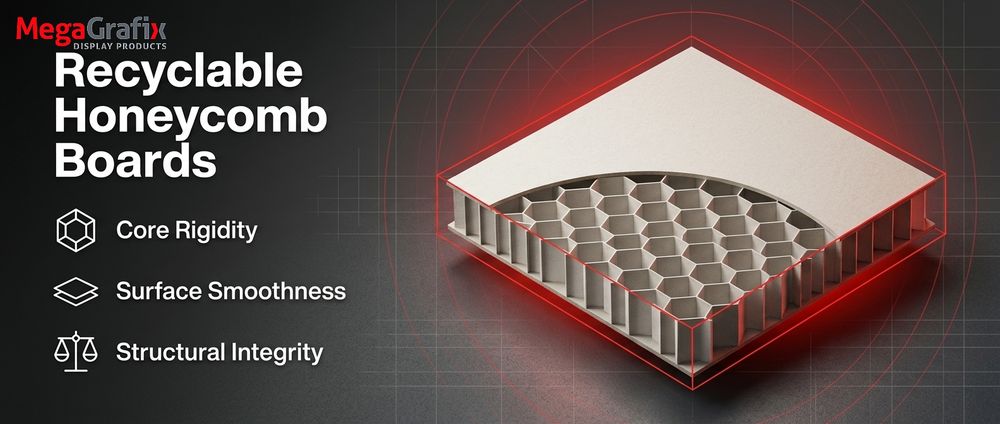

To choose the right substrate for your display structures, you must evaluate the internal engineering of the board. Honeycomb boards utilize an internal matrix of hexagonal cells modeled after natural beehive geometry. These vertical cell walls are sandwiched between two flat paper linerboards using water-based adhesives. This vertical orientation yields exceptional strength-to-weight performance. The structural design resists heavy downward loads while keeping the overall sheet remarkably lightweight compared to solid fiberboard or medium-density fiberboard.

When assessing boards for freestanding walls or hanging elements, examine the cell diameter alongside overall sheet thickness. Standard cell sizes range from a quarter inch to over half an inch, with board thicknesses varying from ten millimeters up to two inches. Smaller cell diameters increase compression resistance, which prevents localized crushing from brackets, monitor mounts, or shelving fixtures. If your booth footprint incorporates physical product shelving, selecting a dense, small-cell core ensures your display stands straight without sagging under mechanical stress.

Weight savings translate directly into measurable logistical advantages across your entire event calendar. Honeycomb panels typically weigh a fraction of comparable wooden or solid plastic panels. By reducing structural mass, you decrease drayage handling costs assessed at convention centers, which charge freight per hundredweight. Your setup crews can maneuver larger individual panels by hand, reducing on-site labor requirements and minimizing the risk of accidental drops that damage expensive graphics.

Structural rigidity also prevents the dreaded oil-canning effect, where large flat expanses buckle inward under spot lighting. Honeycomb boards maintain dimensional flatness across eight-foot and ten-foot spans when manufactured with proper core-to-facing adhesive distribution. This structural integrity gives your graphics a planar, architectural aesthetic that reflects professionalism throughout multi-day trade conferences.

Surface Liner Selection for Vibrant Sustainable Booth Graphics

The interior core delivers structural capacity, but the outer linerboard governs your visual presentation. Achieving crisp, sustainable booth graphics requires selecting facing papers formulated specifically for direct-to-substrate digital imaging. Common linerboards include bleached white kraft paper, coated clay-finish stock, and unbleached natural brown kraft. Each selection introduces distinct aesthetic attributes and color reproduction variables that your creative team must account for.

Coated white paper facings deliver exceptional ink holdout, preventing micro-droplets from bleeding deep into raw paper fibers. This smooth surface tension is essential for high-resolution graphics, corporate logos, and sharp typographic details. When selecting coated facings, confirm that the clay or mineral coating remains repulpable during post-event recycling processing. Avoid laminates that bond synthetic polyester films to paper exteriors, as these hybrid composites confound standard municipal pulping facilities and often end up in landfills.

For brands highlighting ecological themes, unbleached brown kraft facings offer an organic, raw look. This textured surface provides an unmistakable visual signal of environmental responsibility. However, printing on unbleached brown stock requires specialized digital white-ink understriking to preserve accurate corporate brand colors. Without a dense white ink foundation beneath your process inks, colors will absorb the underlying kraft tint, distorting your intended corporate color palette.

Moisture resistance in linerboards is equally critical during variable venue conditions. Convention facilities often alternate between cold staging docks and heated hall interiors, introducing humidity swings that can cause unsealed paper boards to absorb moisture. High-grade honeycomb display boards incorporate moisture-resistant barrier agents within the linerboard paper slurry. This treatment stabilizes the sheet, ensuring your backdrops stay flat and vertical despite rapid indoor climate shifts.

Direct-to-Board Trade Show Printing Technologies and Ink Systems

Pairing the correct digital imaging process with your chosen board determines visual brilliance, adhesion, and end-of-life circularity. Modern trade show printing relies primarily on UV-curable and water-based resin inkjet systems configured on industrial flatbed printers. These machines apply inks directly to the rigid substrate, entirely eliminating the need to print onto pressure-sensitive vinyl films that must then be laminated to the board.

Direct flatbed printing offers clear advantages over vinyl-mounted applications:

  • Eliminates single-use polyvinyl chloride (PVC) films that ruin the circular recycling process of paper boards.
  • Removes the risk of surface bubbling, wrinkling, or edge peeling caused by thermal expansion during transport.
  • Reduces total material volume and labor hours during the graphic finishing and assembly stages.
  • Allows precise machine registration for exact alignment during subsequent computerized cutting processes.

UV-curable inks cure instantly when exposed to ultraviolet light arrays mounted on the print carriage. The photo-initiators polymerize instantly into an inert, durable ink film that adheres mechanically to the paper linerboard. This process yields superior scuff resistance, making it suitable for high-traffic aisle graphics that encounter attendee contact. Because these inks cure solid on the board surface, they do not emit hazardous volatile organic compounds (VOCs) during production or installation.

Advanced hybrid and flatbed printers also maintain tight vacuum control over the entire honeycomb panel. This vacuum hold-down prevents the board from shifting under high-speed print passes, preserving fine vector line work and small informational text. When your designs include complex diagrams, trade show printing demands precise color control to retain corporate identity standards across large wall surfaces.

CNC Finishing, V-Grooving, and Structural Joinery Methods

Transforming flat honeycomb boards into self-supporting, three-dimensional booth architecture depends on digital finishing technology. Computer-controlled flatbed routing tables, equipped with oscillating knives and precision milling heads, cut these composite panels with exact accuracy. By leveraging precision computer numerical control (CNC) hardware, you can execute intricate display designs without relying on metal structural framing.

V-grooving represents one of the most effective structural fabrication methods for honeycomb boards. A specialized router bit removes a triangular section of the core and internal facing while leaving the outer facing paper completely intact. This clean channel allows your team to fold the rigid board into crisp ninety-degree angles, building robust architectural columns, reception counters, and freestanding pedestals without metal fasteners or chemical adhesives.

Consider these mechanical joinery techniques to assemble complex booth components without synthetic bonding agents:

  • Interlocking slot-and-tab joints that slide together smoothly during on-site booth assembly.
  • Heavy-duty paperboard edge bandings that conceal open honeycomb cells and protect corners from transit impacts.
  • Friction-fit corner keys that connect adjacent wall panels into solid, self-anchored partition walls.
  • Modular tongue-and-groove connections that align adjoining graphic sections with minimal seam visibility.

By eliminating permanent adhesives during booth assembly, you preserve the post-event recyclability of the structural panels. Components assembled with mechanical slots can be disassembled without tear damage, boxed flat, and shipped forward to another convention. Alternatively, if a single panel sustains damage, your crew can replace that specific segment rather than scrapping the entire backdrop assembly.

Post-Event Circularity, Decommissioning, and Disposal Audits

The operational life cycle of your booth concludes during teardown, where sustainable materials prove their worth. Traditional booths made from painted timber, laminates, and foam-core boards incur steep disposal surcharges at convention docks. Drayage crews toss these mixed-material items directly into waste compactors, sending tons of salvageable material to local landfills. In contrast, pure paper honeycomb boards follow a straightforward recycling path.

To guarantee complete circularity at the close of an exposition, design your booth structure for straightforward mechanical separation. When every component consists of cellulose paper, your on-site dismantling crew can flatten the panels directly into convention center paper recycling compactors. If your structure incorporates non-paper elements like acrylic display shelves, aluminum monitor arms, or LED light fixtures, use quick-release mechanical fasteners so staff can detach them in minutes without damaging the paper panels.

Conducting a formal environmental audit provides quantitative data that validates your organization's sustainability investments. You can calculate the exact weight of paper diverted from landfills and convert those figures into greenhouse gas avoidance metrics. Corporate governance boards increasingly expect marketing leadership to present concrete environmental documentation alongside traditional return-on-investment metrics from industry events.

When planning your regional exhibit schedules, confirm disposal parameters with your venue management and contracted general service contractors beforehand. Most major convention centers maintain commercial paper recycling streams that readily accept unlaminated honeycomb boards. Establishing this operational path ahead of the event ensures your investment in sustainable materials delivers genuine environmental benefits rather than ending up in a municipal incinerator.

Optimizing Your Next Event Build for Sustainable Performance

Transitioning your trade show presence toward fully circular display structures is an achievable operational upgrade that sharpens your brand image. By replacing heavy, non-recyclable materials with high-performance honeycomb panels, you reduce freight exposure, cut labor overhead, and demonstrate clear environmental responsibility on the show floor. Every element, from core cell geometry and printable linerboards to precise CNC joinery, works together to deliver a professional booth presence.
